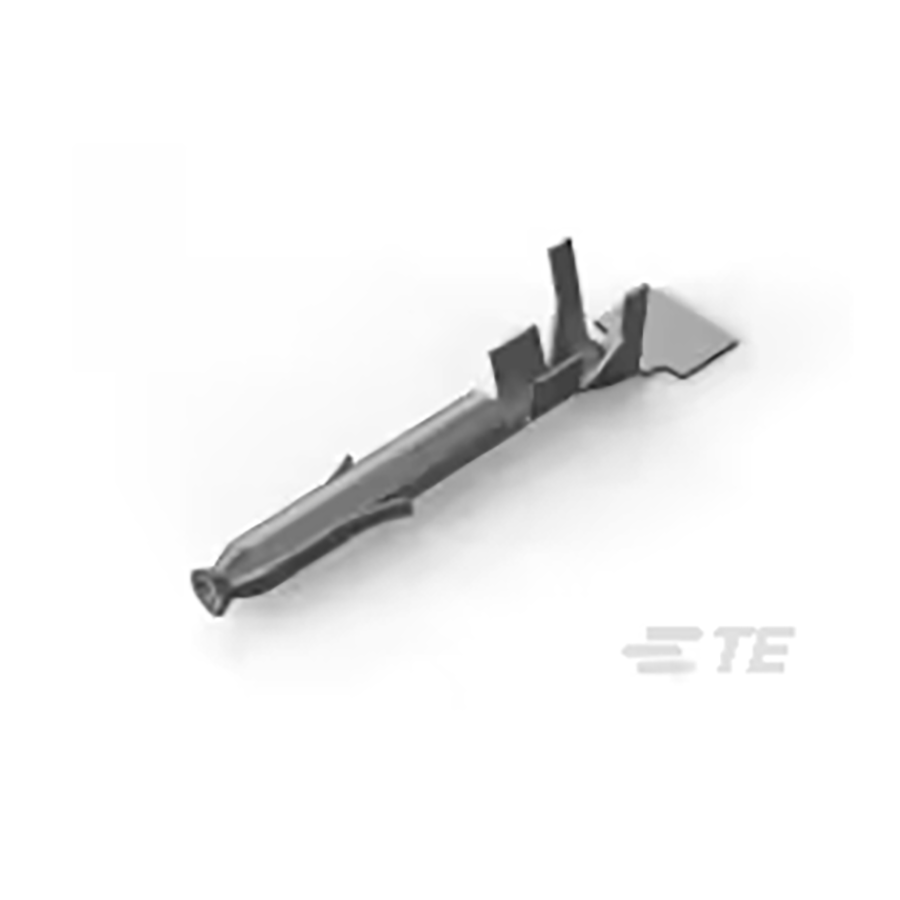

770904-1
Manufacturer:
TE Connectivity
Mfr.Part #:
770904-1
Datasheet:
Description:
IC and Component Sockets Cable Socket
| Parameter | Value |
|---|---|
| Length | 17.25 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 4.42 mm |
| Material | Brass |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 3.81 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | |
| Number of Terminals | 1 |
| Current Rating | 9.5 A |
| Max Current Rating | 11.2 A |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| Connector Type | Socket |
| Wire/Cable Gauge | 22 AWG to 18 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Number of Ports | 1 |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 11.2 A |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 18 AWG |
| Plating | Tin |
| Insulation Diameter | 2.3876 mm |
| Contact Gender | Female |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 28984
Distributors
pcbx
pcbxUnit Price$0.12296
Ext.Price$0.12296
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12296 | $0.12296 |
| 10 | $0.06148 | $0.61480 |
| 50 | $0.04729 | $2.36450 |
| 100 | $0.03638 | $3.63800 |
| 500 | $0.03232 | $16.16000 |
| 1000 | $0.02871 | $28.71000 |
| 3000 | $0.02641 | $79.23000 |
| 5000 | $0.02429 | $121.45000 |
| 10000 | $0.02234 | $223.40000 |
| 30000 | $0.02055 | $616.50000 |
| 50000 | $0.01891 | $945.50000 |
